Pallet Rack System


Pallet Rack Uprights

Available in either Regular Duty and Heavy Duty Configurations

All Pallet Rack frames feature welded footplates, 2" on center beam adjustment, size availability to 48" wide and 192" high. Sahara or Blue-Gray are standard colors. Frame size should be chosen to allow a minimum pallet overhang of 2" front and 2" rear.

The Pallet Rack load capacity per frame is 26,000 LB. To preclude overturning, the frame depth x 6 cannot exceed the height of the topmost loaded beam pair, unless all the frames are properly anchored or braced externally.

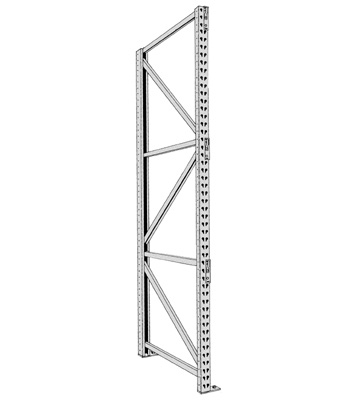

Pallet Rack Upright Frames
	Height	Depth	Regular Duty	Heavy Duty
	72"	24"	$86	$93
		30"	$88	$95
		36"	$89	$96
		42"	$91	$98
		48"	$92	$99
	84"	24"	$89	$97
		30"	$91	$99
		36"	$93	$100
		42"	$94	$102
		48"	$96	$103
	96"	24"	$92	$102
		30"	$94	$104
		36"	$96	$105
		42"	$97	$107
		48"	$99	$108
	108"	24"	$95	$106
		30"	$97	$108
		36"	$99	$109
		42"	$100	$111
		48"	$102	$112
	120"	24"	$104	$116
		30"	$106	$118
		36"	$109	$121
		42"	$111	$123
		48"	$113	$125
	132"	24"	$107	$120
		30"	$110	$123
		36"	$112	$125
		42"	$114	$127
		48"	$116	$129
	144"	24"	$111	$126
		30"	$113	$128
		36"	$115	$130
		42"	$118	$132
		48"	$119	$134
	168"	36"	N/A	$151
		42"	N/A	$154
		48"	N/A	$156
	192"	36"	N/A	$162
		42"	N/A	$164
		48"	N/A	$166
